high security tydenbrooks cable seal

As a principal manufacturer and supplier in the global security sealing industry, we produce high security cable seals that meet the rigorous demands of critical supply chains and asset protection worldwide. Our Tydenbrooks-style seals embody a legacy of robust design, integrating superior mechanical strength with advanced traceability features. Engineered for applications where the cost of tampering is unacceptably high, these seals serve as a formidable physical and administrative barrier against unauthorized access, theft, and fraud. By choosing our products, B2B buyers in logistics, energy, and government sectors secure not just an item, but a verifiable chain-of-custody and a proven deterrent recognized across international borders.

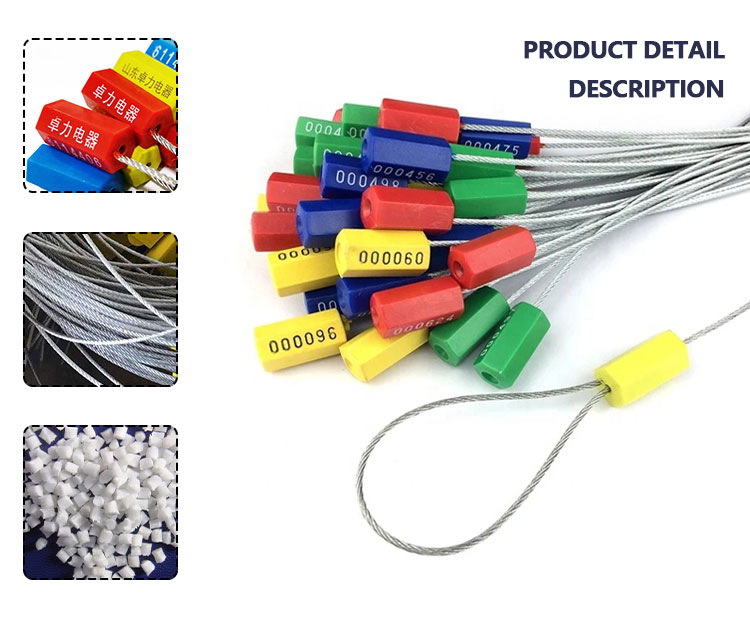

Core Product Characteristics & Engineering Superiority

Our Tydenbrooks cable seals are defined by a meticulous construction that prioritizes irreversible locking, evident tampering, and operational flexibility.

1. Hybrid Metal-Plastic Lock Body for Uncompromising Strength

The integrity of the seal originates from its patented internal mechanism, shielded within a durable external casing.

Internal Steel Ball Locking Mechanism: At the core of the lock body resides a precision-engineered metal assembly featuring a steel ball cable-stayed structure. When the galvanized steel cable is inserted and tensioned, these hardened steel balls are forced into a locked position, gripping the cable with immense force. This mechanism is deliberately irreversible; any attempt to withdraw the cable only tightens the grip, making covert entry impossible.

External ABS Plastic Housing: This formidable internal metal core is encased in a high-impact ABS plastic outer shell. This design provides crucial benefits: it protects the mechanism from corrosion, dirt, and environmental degradation, while also allowing for clear, high-visibility coloring and marking. The hybrid approach yields a seal that is both exceptionally strong and resilient to harsh conditions, from maritime salt spray to industrial settings.

2. Multi-Layer Tamper-Evidence and Customization

Security is both physical and administrative. Our seals provide multiple, clear indicators of integrity.

Definitive Physical Tamper Evidence: The design ensures that compromise leaves unambiguous signs. Successful removal requires the destructive cutting of the high-tensile steel cable or the complete fracture of the lock body. The steel ball mechanism itself is destroyed if forcibly manipulated, offering a secondary internal proof of attack beyond visible external damage.

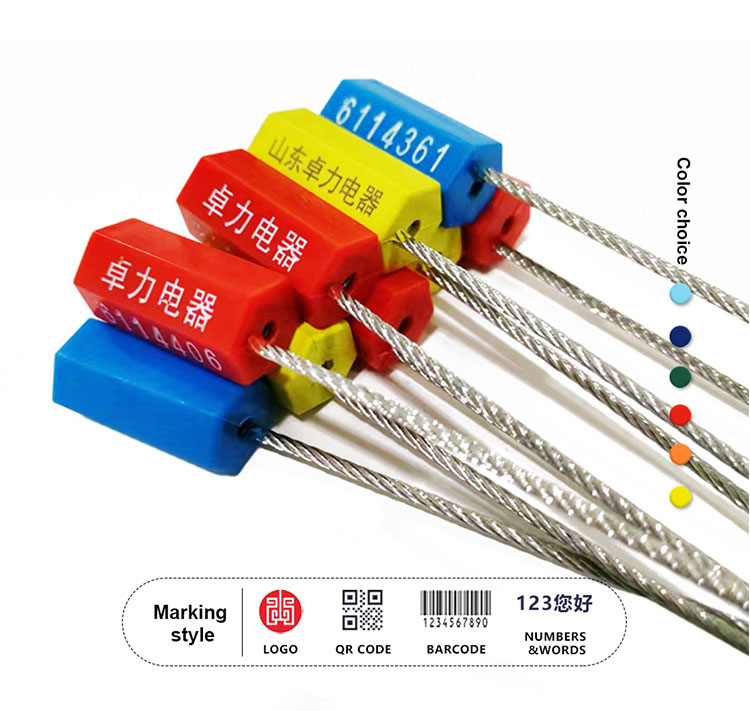

Comprehensive Custom Marking: The surface of the ABS lock body is optimized for permanent identification. We employ hot stamping or laser printing to apply unique sequential serial numbers, barcodes (1D/2D), QR codes, company logos, and inspection dates. This creates an unforgeable link between the physical seal and digital shipping manifests or asset management systems, enabling seamless electronic verification and audit trails.

Full-Spectrum Color Coding: Available in four standard, high-visibility colors (red, yellow, blue, green) for immediate status or department identification. We further support full custom color matching to any client specification, facilitating brand alignment or complex, color-coded security protocols across global operations.

3. Configurable Security to Fit Specific Needs

We recognize that security requirements vary, and our product is built to adapt.

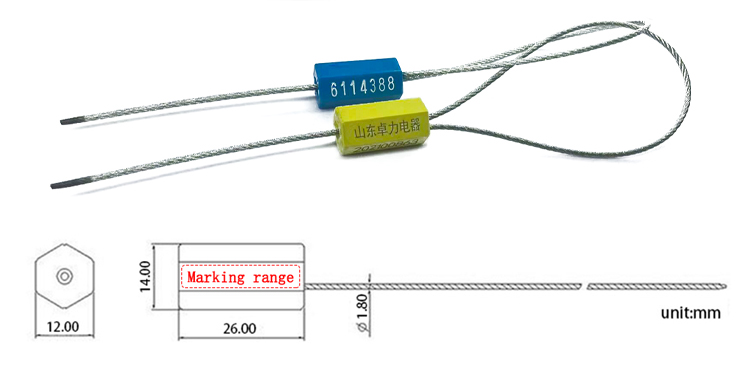

Adjustable Cable Specifications: The seal utilizes a galvanized steel wire with , providing an optimal balance of flexibility and cut resistance. Crucially, the cable length can be manufactured to customer requirements, allowing the seal to accommodate everything from small valve handles to large container door hasps without compromising performance.

High Tensile Strength: The combination of the thick steel cable and the internal locking mechanism results in a seal with a very high pull-apart strength, typically exceeding industry standards for high security seals, deterring brute-force attacks.

Primary Application Scenarios

The unmatched security and traceability of our Tydenbrooks-style security seals make them the mandatory choice for high-risk, high-value custodial transfers across industries.

Certificate: ISO17712:2013E

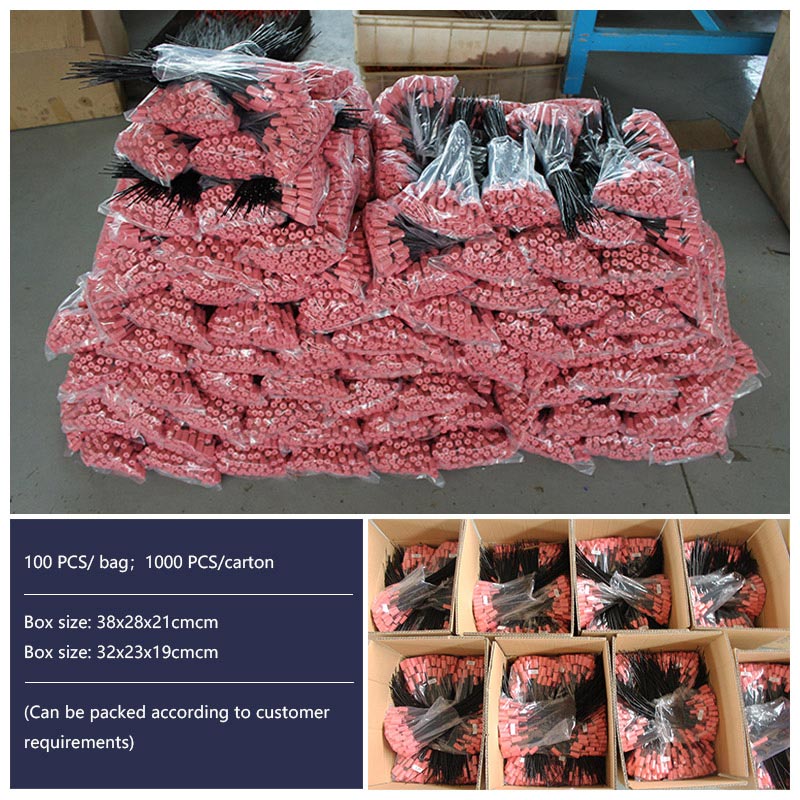

Packing&Shipping

100pcs per bag,1000pcs per ctn

International Intermodal Container Shipping: The definitive solution for sealing ISO shipping containers in compliance with C-TPAT, PIP, and ISO 17712 "High Security Seal" guidelines. They are the global standard for ensuring the integrity of ocean, rail, and truck freight, protecting goods from tampering during transit.

Energy & Utilities Sector: Essential for sealing metering equipment, pipeline valves, wellheads, and transformer boxes in oil & gas, electric, and water utilities. They prevent unauthorized access, meter tampering, and product diversion, safeguarding revenue and infrastructure.

Government, Defense & Customs: Used by customs agencies, defense logistics, and law enforcement to seal sensitive materials, evidence lockers, imported cargo under bond, and military equipment, ensuring absolute accountability and chain-of-custody.

Aviation & High-Value Logistics: Securing air cargo unit load devices (ULDs), pharmaceutical shipments, electronics, and precious goods where the value of the contents justifies the highest level of physical security.

Manufacturing & Retail Security: Protecting high-value raw material storage, finished goods in transit, and securing retail distribution cages or trailers against internal and external pilferage.

• Frequently Asked Questions (FAQ)

• 1. How does the internal steel ball mechanism provide superior security compared to standard plastic or simple metal clips?

• The steel ball locking mechanism is a positive locking system. Under tension, the balls wedge irrevocably against the cable. Unlike friction-based or spring-clip designs, it cannot be picked, shimmed, or released with simple tools. Any attempt to force it results in catastrophic, visible failure of the mechanism. This provides a level of tamper-evident security that is trusted for cross-border commerce and high-value assets, offering both a physical deterrent and unambiguous forensic evidence.

•

• 2. What are the lead times and minimum order quantities (MOQs) for custom-colored seals with laser-printed sequential numbering?

• As a direct manufacturer, we offer flexible scaling. For custom colors and numbering, standard MOQs start at 5,000 units to ensure cost-effectiveness. Lead times for custom orders are typically 7-15 days from order confirmation, depending on complexity and volume. We maintain stock of standard color, blank seals for faster turnaround on non-customized orders. Our sales team works to accommodate urgent requirements whenever possible.

•

• 3. Are these seals officially tested and certified to meet ISO 17712 standards for high-security seals?

• Yes. Our Tydenbrooks-style cable seals are engineered to meet and exceed the mechanical and environmental testing criteria outlined in ISO 17712 for "High Security Seals." This includes rigorous testing for tensile strength, shear strength, impact resistance, and corrosion. We can provide independent test laboratory reports to support our certification claims, which is crucial for tenders and compliance in regulated industries like international shipping and energy.
